New possibilities in the field of Fixed Wireless Access are on the Cambium horizon with the introduction of the Cambium Networks ePMP 4500 , the fourth generation ePMP product that offers even greater performance, scalability and reliability.
With highly advanced features such as 8×8 MU-MIMO, speeds up to 4 Gbps and support for up to 120 SM , Cambium Networks ePMP 4500 takes your network to new levels and allows you to scale to thousands of end users using a limited number of channels.
Cambium Networks ePMP 4500 is ideal for high-density environments: thanks to its very high performance and compact size, WISPs can increase the speed of your network, reduce congestion on towers, and add more subscribers in every geographic area, including new ones. all at an advantageous cost and a low-risk return on investment. Plus, we can add the advantage of compatibility with the cnMaestro management platform in both its Essential and Premium versions.
The ePMP 4500 offers more than 4 Gbps, is equipped with 8x8 MU-MIMO. The 5 GHz ePMP 4500 works with the 802.11ax protocol and is compatible with the SM Force 300 and Force 400 as well as the new SM Force 4500 series.
The ePMP 4500 access points work with the Force 400 CPEs, can be centrally managed with cnMaestro and thanks to the LINKPlanner design tool, which can be downloaded free of charge from the Cambium portal, it is possible to quickly define the network performance, planning the implementation according to high quality standards.
The ePMP 4500 Cambium network portfolio includes:
ePMP 4500 : AP MU-MIMO 8×8, integrated 90° sector antenna, offers up to 4 Gbps.
ePMP 4500 L : 2×2 AP MIMO, high capacity, flexible connectivity with sector and horn antennas
ePMP 4500 C : Same radio as the ePMP 4500 but without integrated antenna, allowing the end-user to install their own sector or horn antenna.
ePMP 4525 : CPE (SM) compatible with ePMP 4500 AP, high capacity and low latency, 1024QAM and integrated 25dBi parabolic antenna.

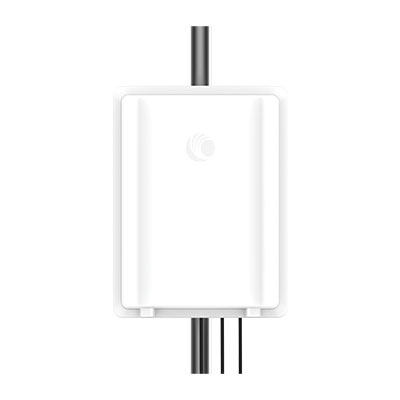

ePMP 4500
The ePMP 4500 access point offers up to 4 Gbps capacity and supports up to 120 SM. With 8x8 MU-MIMO/OFDMA with 802.11ax technology, the 5 GHz AP can transmit to four Force 400 SM simultaneously, quadrupling the capacity of 2x2 systems and increasing link budgets by 6 dB with downlink beamforming. It is equipped with an integrated 8×8 90° MU-MIMO sector antenna, GPS Synchronisation and QoS.

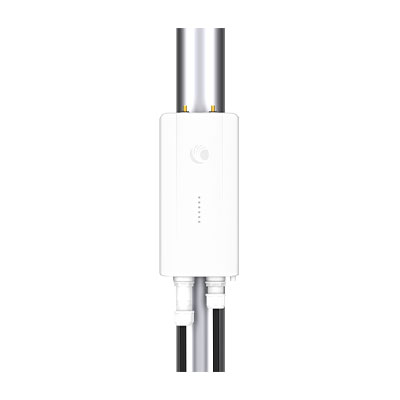

ePMP 4500L
The ePMP 4500L 2×2 MIMO connectorised access point features two RP-SMA for use with 90°/120° sector antennas and is also compatible with RF Elements Twistport™, the ePMP adapter. With new features such as 1024QAM and 80 MHz channel bandwidth, this access point delivers more than 1 Gbps throughput.

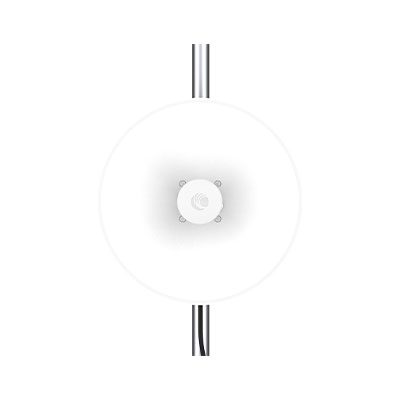

ePMP 4525L CPE
The ePMP 4525L is the very high performance CPE, perfect for point-to-point and point-to-multipoint systems. Advanced features include: Gbps capacity in the 80 MHz channel , low latency , interoperability with ePMP 4500 AP, 1024QAM and integrated 25 dBi dish antenna, QoS for voice, video and data application services for both residential and business users, manageable with cnMaestro.
